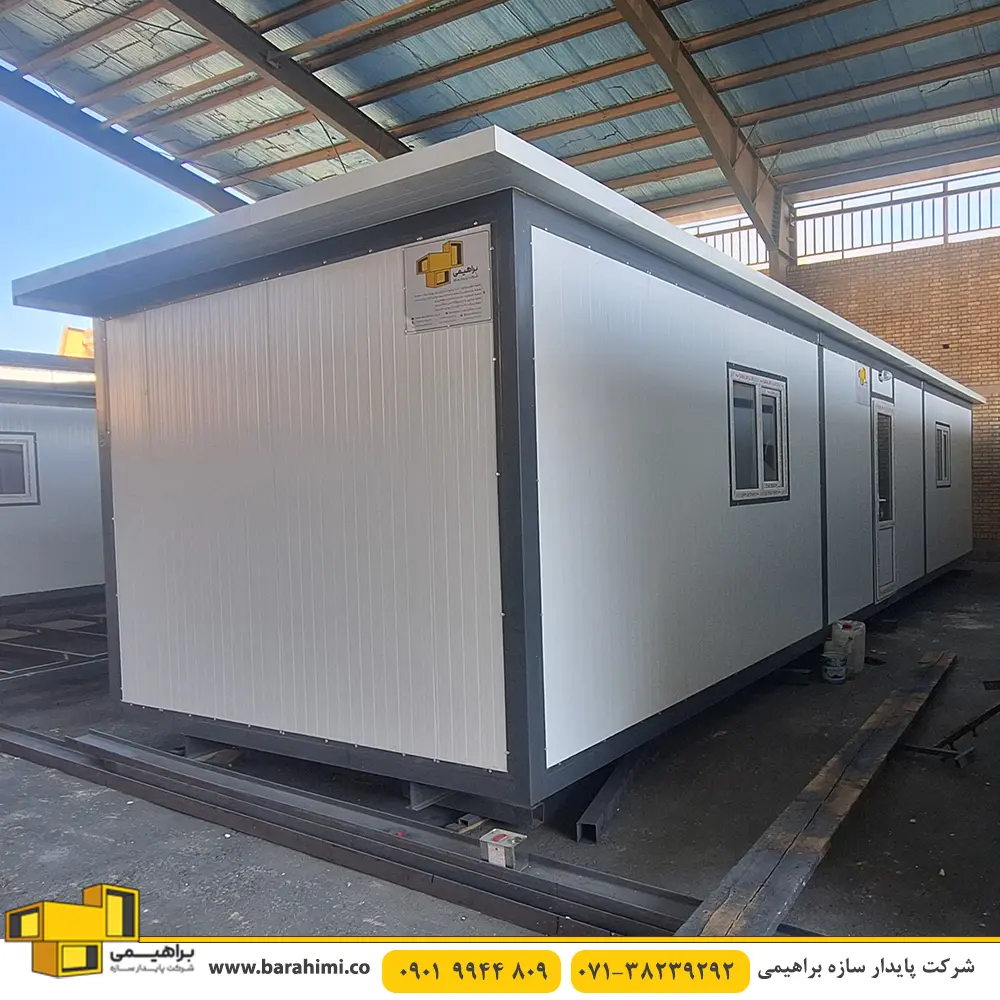

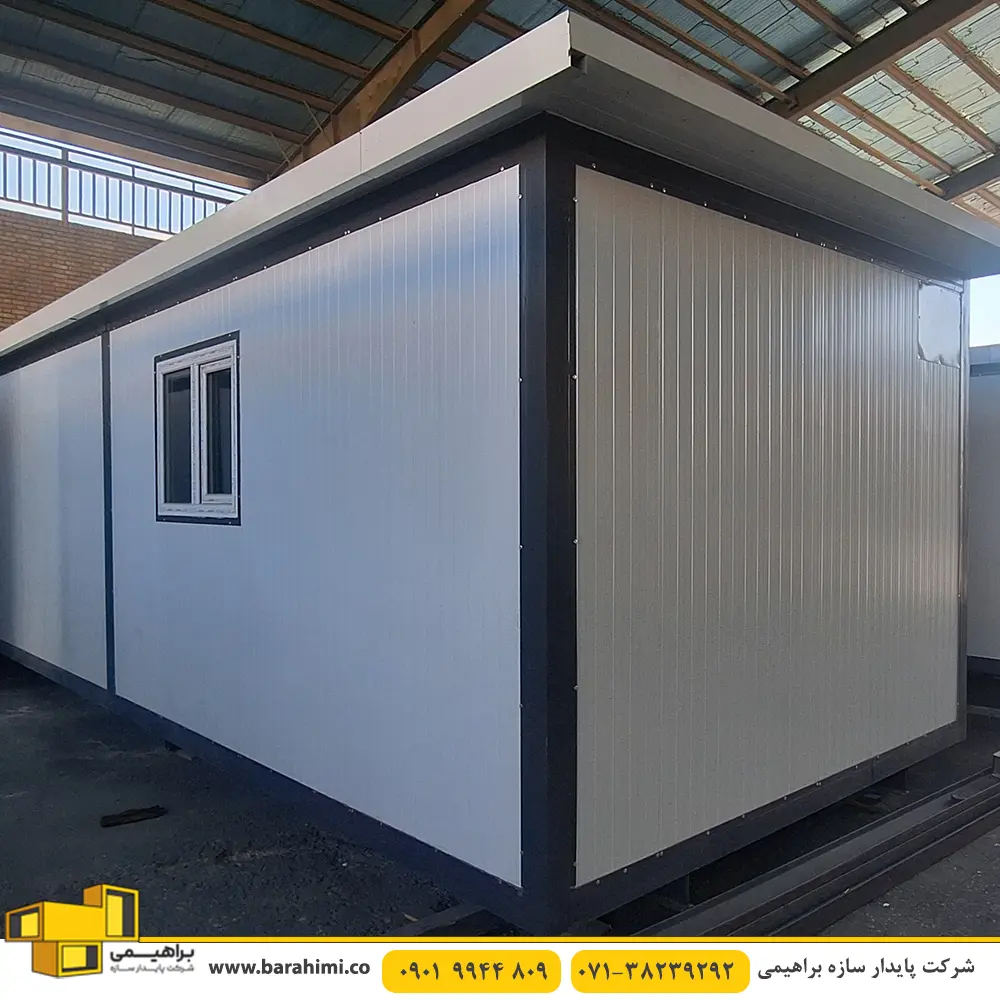

12 m Two-Room Corridor Cabin with Sandwich Panels

Additional information
Reviews (0)

Chassis (Base Frame)	I-Beam 14
Structural Body Frame	Heavy 90×90 cm Steel Profile
Floor Joists	60×30 mm Profiles, Spaced 40 cm, Installed Transversely
Roof Cladding	5 cm Thick Sandwich Panel
Wall Cladding	Sandwich Panel – 5 cm Thickness
Door	Double-Glazed UPVC
UPVC Windows	Double-Glazed Sliding Window
Insulation	130 g/m² Polyester Layer, 2-Layer Export-Grade Bitumen Membrane with Aluminum Foil
Concrete Flooring	Standard Sand-Cement Mixture for Tile Installation
Ceramic Type	Acid-Resistant (for Cleaning Solutions), Frost-Resistant, Impact-Resistant (Compressive Forces), Maximum Water Absorption: 10%, Thermal Shock Resistant
Primer Paint	Chassis and Structural Frame of the Cabin
Surface Paint	Premium-Grade Paint – 60 Micron Thickness
Beam-to-Column Connection	Columns for Uniform Structural Behavior During Relocation, Use of Gussets at All Connection Corners
Wall Sandwich Panel Support Frame	3-L Spiral Angle
Sandwich Panel Specifications	5 cm Thickness with Polyurethane (PU) Foam, Density: 40 kg/m³, Thermal and Acoustic Insulation, Equipped with Polystyrene Insulation and Injected Polyurethane Foam, Resistant to Scaling and Corrosion, Resistant to Mold and Bacterial Growth, Resistant to Rust, Wind, Chemicals, Soil Movement & Earthquakes, and Insects, Resistant to Solvents, Lubricants, Mineral Oils, Dilute Acids and Bases, Sandwich Panel Walls with 50 mm Polyurethane Foam, Clad on Both Sides with Aluzinc Alloy Sheets and Oven-Baked Coating, Waterproof Flashing Around Columns, Wall Tops, and Floor Edges
Other Equipment and Installations	Complete Electrical Wiring, Fuses: 10 A, 16 A, 25 A, Lightning, Power Outlet, Surface-Mounted Duct, Switch
Silicone Sealant	Excellent Adhesion and Bonding Strength, High Flexibility, High Pressure and High Temperature Resistance, UV-Resistant یا Resistance to UV Radiation
Type of Duct	PVC Ducts, Size 2.5 & 4 mm²
Wall Joint Sealing	Excellent Adhesion and Sealing Performance, High Pressure and High Temperature Resistance, Specialized Joint Sealant, UV-Resistant
Lighting Type	40W Energy-Saving Linear Light, Shatterproof Tunnel Light for Exterior of Container
Power Inlet	Special Waterproof Socket with Male and Female Connectors
