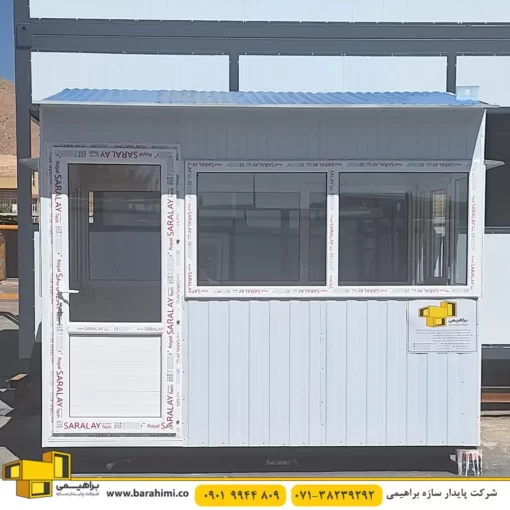

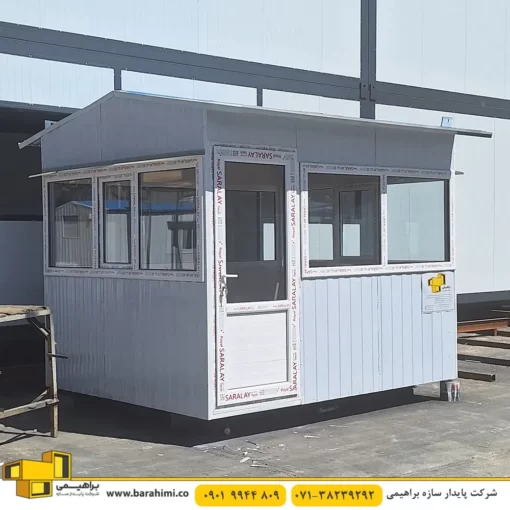

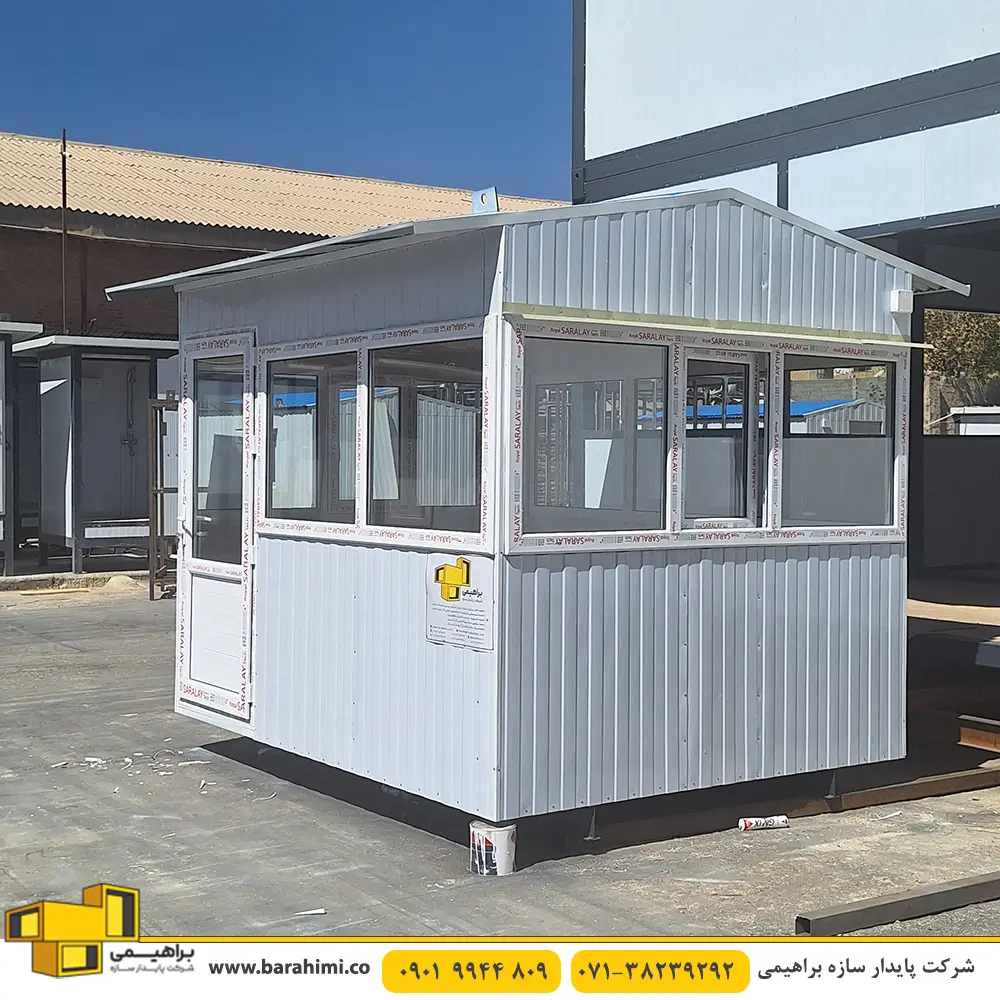

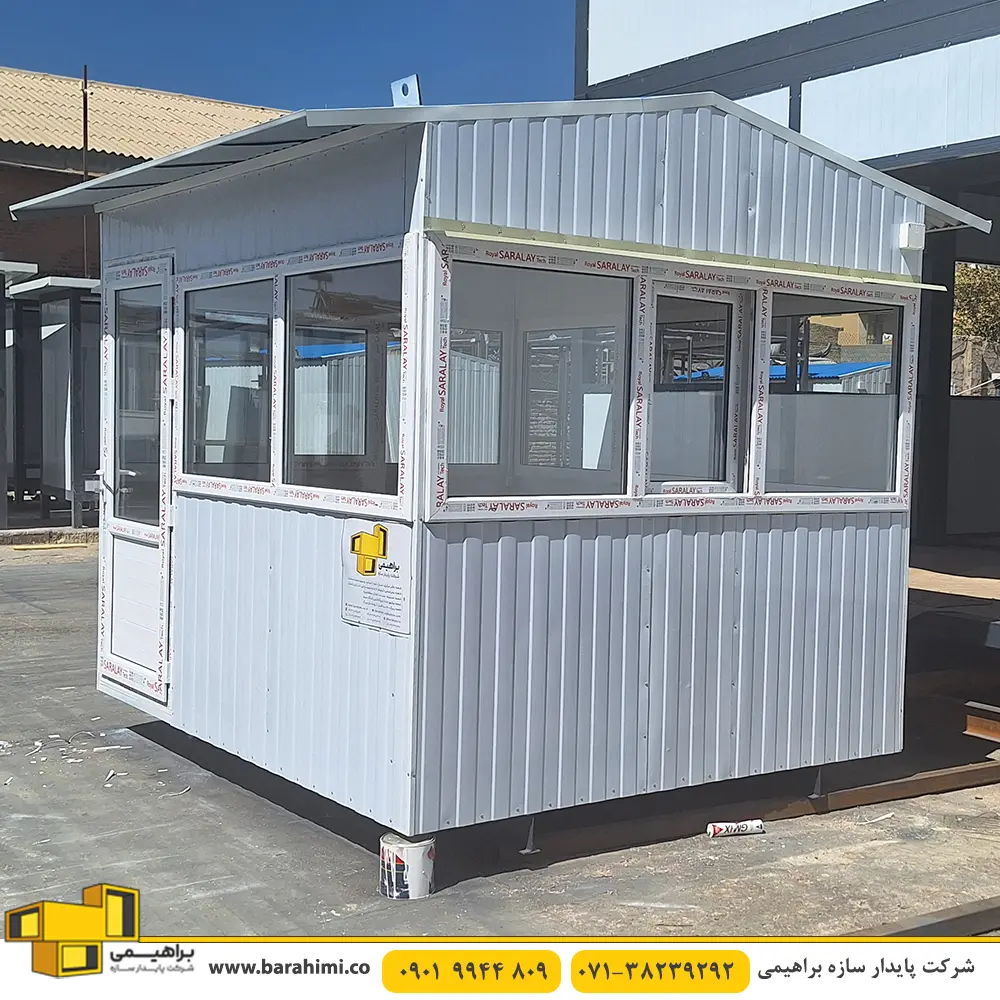

Guard Cabin with Galvanized Steel Sheets

Category: Portable Cabins

Chassis (Base Frame)	I-Beam 14
Structural Body Frame	Heavy 40×40 cm Steel Profile, Grid-Framed at 50 cm Spacing for Walls
Floor Installation	40×40 mm Heavy Profiles, 40 cm Spacing on Floor
Paint and Anti-Corrosion Coating	Full Coating, 100 Microns Thick, Applied Before Roof & Wall Sheet Installation
Sheet Cladding	Roof and Wall Cladding with 0.5 mm Pre-painted Galvanized Steel Sheet (Mobarakeh Steel), Oven-Baked Finish
Container Floor	16 mm Premium Laminated MDF
Final Floor Covering	Using Premium Felt-Backed Floor Covering
Insulation	4 cm High-Density Polystyrene (EPS) Foam
Interior Finishing	Premium Coated PVC, 20–25 cm
Electrical Wiring	1.5 mm² Wire for Lighting Circuits, 2.5 mm² Wire for Power Outlets, 4 mm² Grounded Wire for Air Conditioner Switches, Duct 2 × 2.5 mm², Duct 4 × 4 mm², Surface-Mounted Grounded (Earth) Outlet
Doors & Windows	Single-Glazed UPVC Windows with Premium Hardware – 2 Units in 6m Units, 4 Units in 12m Units
Sealing and Insulation	Excellent Adhesion and Sealing Performance, Resistant to High Pressure and Temperature, Use of Premium-Grade Flexible Sealant, UV-Resistant for All Seams around Windows, Doors, Roof, Skirting, and External Wall Joints
